Thermal Line |
|
|
Resolution |
8 dots/mm (203dpi) |
|
Printing Speed |
200mm/s |
|
Effective Printing Width |
72 mm |
|
TPH |
150km |
|
Auto cutter |
1,500,000 cuts |
|
Paper Width |
79.5±0.5mm |
|
Paper Type |
Normal Thermal Paper |
|
Paper Size |
Max 80 mm×Ø80mm |
|
Paper Thickness |
0.06mm～0.08mm |
|
Driver |
Windows/JPOS/OPOS/Linux/Android |
|
Print Font |
Codepage; ANK: 9 x17 / 12 x24; Chinese: 24 x 24 |
|
Barcode |
1D: UPC-A、UPC-E、EAN-13、EAN-8、CODE39、ITF25、CODABAR、 CODE93、CODE128 |
|
2 D: PDF417、QRCODE、Data Matrix |
|
|

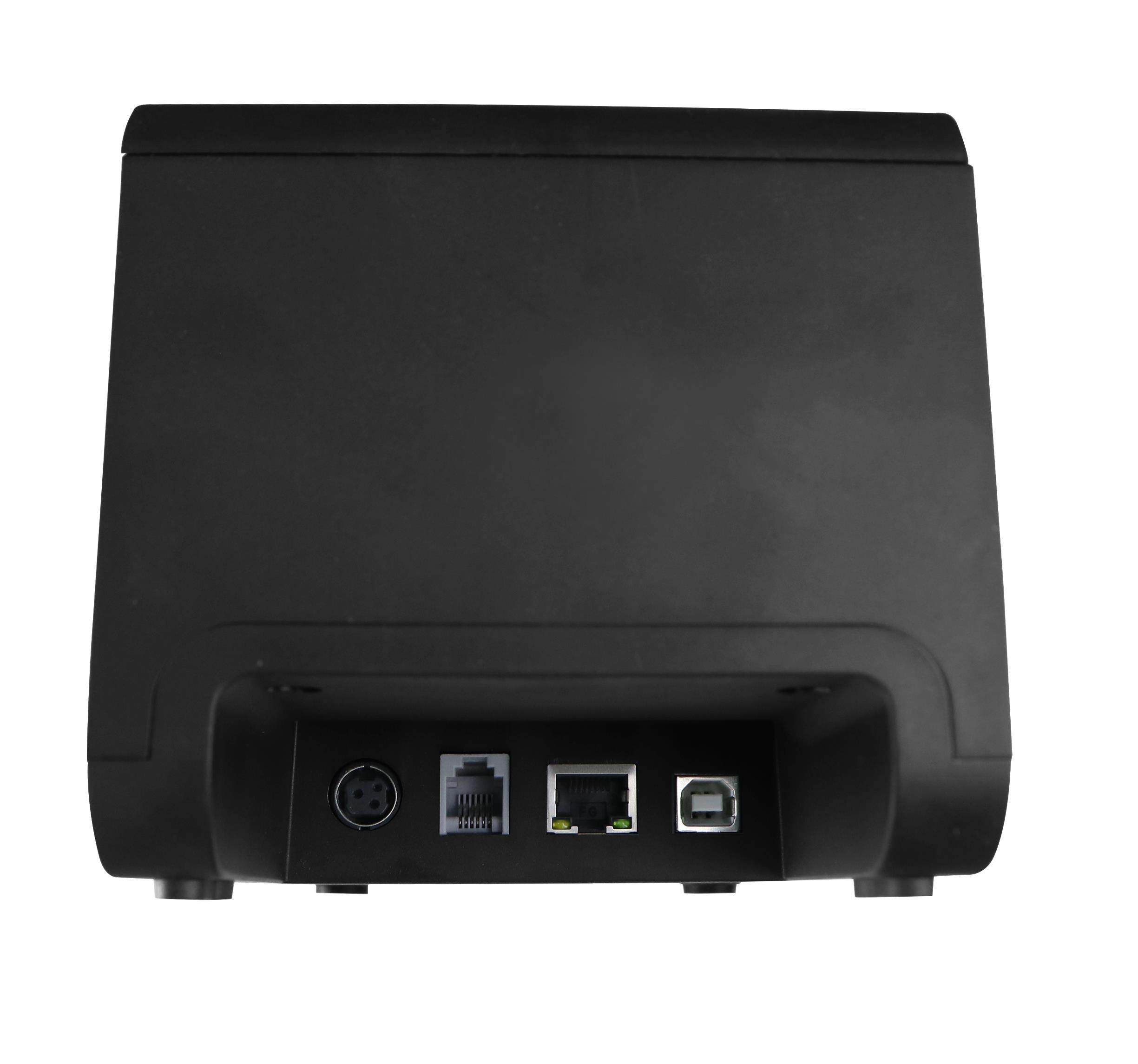

Interface |
USB+Ethernet |
|
Power Supply |
DC24V±10%, 2A. A-1009-3P power socket |
|
Cash Drawer |
DC24V,1 A; 6-Wire RJ-11 socket |
|
Operating Temp/Humidity |
0～50℃/10～80% |
|
Outline Dimension |
165x120x119mm(L×W×H) |
|
Storage Temp/Humidity |
-20～60℃/10～90% |
