Windows |
Android |
|
|
Panel size |
14.1 inch |
|
|
Resolution |
1920*1080 or 1366*768 |
|
|
CPU |
Intel J4125/J6412/i3/i5/i7 |
RK3566/RK3568 |
|
RAM |
DDR4—4/8/16GB |
DDR4–2/4/8GB |
|
SSD |
mSATA SSD 64GB / 128GB/256G/512G |
16/32/64/128GB |
|
Printer |

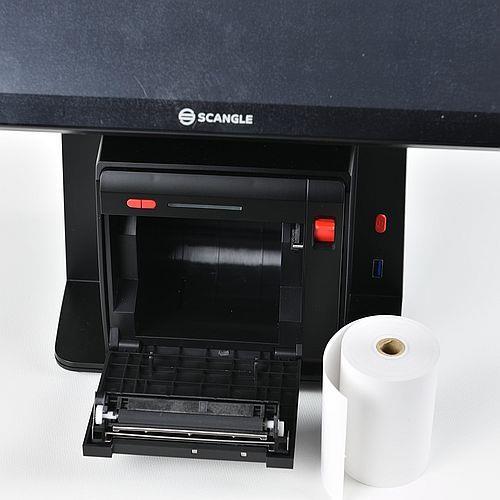

80mm Thermal printer (USB/COM/Bluetooth ) support OPOS /ESC-POS commands |
|
|
GPU |
Intel HD Graphics |
|
|
BIOS |
BIOS AMI UEFI |
|
|
Communications |
1000 Mbps integrated Ethernet + Inbuilt |
|
|
Operating System |
Windows IOT / windows 10 pro/ windows 11 |
Android 11/13/14 |
|
Touch |
Multipoint capacitive touch |
|
|
Brightness |
300 NITS display |
|
|
Driver Support |
SGT116 thermal printer driver |
|
|
Interface |
2*USB 3.0 port + 3*USB 2.0 port, |
|
|
1*LAN port |
||
|
1*COM port |
||
|
1*VGA port |
NO |
|
|
1*LINE-OUT port |
||
|
1*RJ11 port for cash drawer |
||
|
1*DC port |
||
|
WiFi |
Optional |
yes |
|
Bluetooth |
Optional |
yes |
|
Optional |
NFC card reader |
|
|
QR barcode reader |
||
|
Ports/Slots |
LAN Port – 1(10/100/1000 M), |
|
|
Power supply |
DC 12V -7A power supply |
|
|
Operating Temperature |
Operating: 0 to 50 degree C |
|
|
Dimensions (mm) |
290(L)*295(W)*100(H) |
|
|
Weight |
3.5 KG |
|
